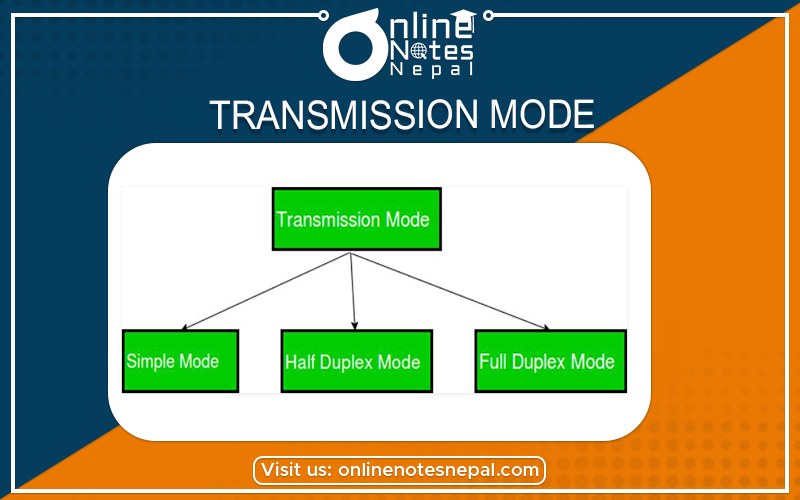

Transmission mode means transferring of data between two devices. It is also known as communication mode. Buses and networks are designed to allow communication to occur between individual devices that are interconnected. There are three types of transmission mode:-
In simplex transmission mode, the communication between sender and receiver occurs in only one direction. The sender can only send the data, and the receiver can only receive the data. The receiver cannot reply to the sender.
Simplex transmission can be thought of as a one-way road in which the traffic travels only in one direction—no vehicle coming from the opposite direction is allowed to drive through.
To take a keyboard / monitor relationship as an example, the keyboard can only send the input to the monitor, and the monitor can only receive the input and display it on the screen. The monitor cannot reply, or send any feedback, to the keyboard.
The communication between sender and receiver occurs in both directions in half duplex transmission, but only one at a time. The sender and receiver can both send and receive the information, but only one is allowed to send at any given time. Half duplex is still considered a one-way road, in which a vehicle traveling in the opposite direction of the traffic has to wait till the road is empty before it can pass through.
For example, in walkie-talkies, the speakers at both ends can speak, but they have to speak one by one. They cannot speak simultaneously.
In full duplex transmission mode, the communication between sender and receiver can occur simultaneously. The sender and receiver can both transmit and receive at the same time. Full duplex transmission mode is like a two-way road, in which traffic can flow in both directions at the same time.
